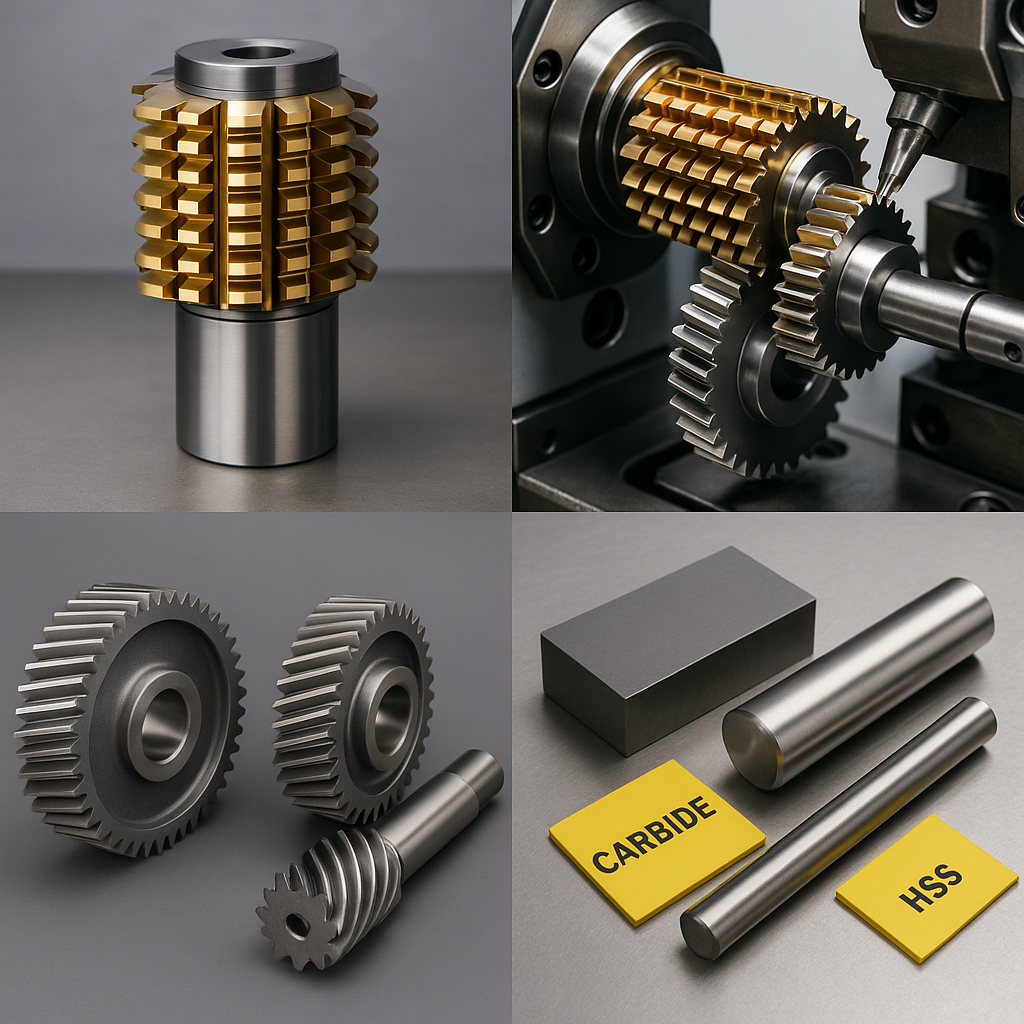

When selecting a gear hob cutter, you must take into consideration the material, machine compatibility, and gear requirements. The gear's module or diameter pitch, pressure angle, tooth count, and whether it's a spur or helical gear are important considerations. Additionally, you should think about what kind of hobbing machine you want to use and the material of the tool (carbide or HSS).
In this article, we will examine the key factors in selecting the right gear hob cutter, taking into account the type of gear, material application requirements, and other relevant factors.
What is a Gear Hob Cutter?
A specialized cutting tool, known as a gear hob, is used in the hobbing process to create gears. Hobbing is a continuous manufacturing process that slowly forms gear teeth through the coordinated rotation of both the hob and the workpiece.
Different profiles, coatings, and materials are available for hobs, each of which is customized for a particular type of gear and application. Using the wrong hob can result in poor surface finish, dimensional inaccuracies, and equipment failure.
Why Gear Hob Selection matters?
Selecting the right hob involves more than just cutting gears; it also involves making sure that
Accuracy and Dimensional consistency
Fewer replacements and longer tool life
Improved productivity and shorter cycle time
Reduced overall cost per component
Compatibility with modern CNC equipment and supplies
Let's now explore the elements that affect your hob cutter selection.
1. Understand Your Gear Specifications
Before considering hob options, you must have an understanding of what type of gear you are making. The following are the main characteristics that can affect a hob selection:
a. Type of Gear
Different hob profiles are needed for different gears:
- Spur gears: which have straight teeth, are the most common and widely used kind of gear.
- Helical Gear: Angular teeth; requires helical hobs matching the helix angle.
- Worm gears: Specialised worm wheel hobs are required.
- Spline & Serration Gears: Hobs that precisely match the spline profile are required for spline and serration gears.
- Internal gears: Specially designed hobs with different configurations are required.
b. Diametral pitch or module
The gear teeth's size is determined by this metric:
Teeth spacing is determined by either the diametral Pitch (imperial) or the Module (metric).
The hob and the gear's module/DP must match exactly.
c. Number of Starts
Multi-start hobs (with many threads) can cut quickly; they also require more machine power and result in a rougher finish. Single-start hobs are slower, but give greater accuracy.
2. Match the Hob Material to Your Workpiece
The material of the gear blank is used to determine the hob's structure and coating.
Typical hob materials consist of:
High-Speed Steel (HSS)
- This works well for small to medium-sized manufacturing procedures.
- Good strength and moderate wear resistance.
- Affordable as well as easy to re-sharpen
b. PM-HSS, or powder metallurgy HSS
- Better resistance to wear than typical HSS
- More suitable for materials that are rough or abrasive
c. Carbide
- Perfect for production in large quantities
- High heat hardness and resistance to wear
- requires consistent cutting conditions and rigid machine configurations
Carbide hobs are very useful for dry cutting applications and for cutting tough materials like stainless steel.
3. Choose the Right Coating
Tool performance and life are greatly affected by coatings. Common hob coatings include:
- TiN (Titanium Nitride) an excellent all-purpose coating that improves wear resistance.
- TiAlN or AlTiN (Titanium Aluminum Nitride) – is a great material for dry or high-speed cutting because it is resistant to oxidation and heat.
- AlCrN (Aluminum Chromium Nitride) – AlCrN has a very high hardness and is appropriate for tough materials like stainless steel.
Every coating has a particular application. Choose AlTiN, for example, if you're hobbing gears in dry conditions. In high-speed applications involving softer materials like aluminum, DLC could offer better performance
4. Consider Machine Compatibility
Your choice of hob will also depend on the capabilities of your CNC or hobbing machine:
- The required spindle speed and torque
- Tool holding system – Does it support arbor-mounted or shank-type hobs?
- Features such as helix angle and lead compensation;
- Maximum hob diameter and width
Advanced hob geometries and coatings can be used with greater flexibility thanks to modern CNC hobbing machines, but only if your hob is made to benefit from them.
5. Select the Cutting Style: Dry vs. Wet
Dry hobbing has become more popular in recent years for economic and environmental reasons. However, it isn't always suitable for all materials or tolerances.
- Dry cutting: This method requires carbide hobs and high-performance coatings, such as TiAlN. Faster and cleaner, however, the tool’s performance is more demanding.
- Wet cutting – A classic technique that uses coolant for improved temperature control and surface smoothness.
Your hob must be designed to accommodate the cutting style that is used in your shop.
6. Precision Class and Tolerances
Hob cutters are offered in a range of accuracy grades, including:
- AA Grade – used for high-performance gears or aircraft, this grade is extremely precise.
- A Grade – High-precision gears used in gearbox or automotive applications.
- B Grade – Standard precision, general-purpose manufacturing.
Using a hob with too low a grade could lead to poor gear quality and rejected parts. Make sure your hob grade always matches the necessary DIN or AGMA gear quality standard.
7. Tool Geometry Considerations
Performance and finish are affected by several geometry factors:
a. Pressure Angle
The most popular pressure angles are 20° and 14.5°, but certain applications require angles.
b. Lead and Helix Angle
Does the gear need tip/root adjustments, crowning, or profile shifting? It may be necessary to use custom hob geometry.
c. Tooth Form Modification
Does your gear require profile shifting, crowning, or tip/root modifications? Custom hob geometry might be needed.
8. Evaluate Cost vs. Tool Life
Advanced-coated carbide hobs may be more expensive initially, but in high-volume manufacturing, their cutting speeds and tool life frequently make them more cost-effective.
Don't simply figure out the cost per tool; figure out the cost per part.
In order to provide customized tooling that significantly cuts cycle time and prolongs tool life, certain gear makers collaborate with hob suppliers, resulting in long-term savings.
9. Partner with the Right Hob Supplier
Choosing a hob isn't a one-time decision—it's an ongoing partnership. Look for suppliers that offer these features:
- Custom tool design and application support
- Tool resharpening and recoating
- Inventory control and On-time delivery
- Internal testing and optimization facilities
The best suppliers assist you in enhancing the quality of your gear and minimizing manufacturing issues by acting as an extension of your engineering team.
Example from the Real World: Gears in Automobile Transmissions
Suppose you are hobbing helical gears made of hardened steel for an automobile transmission. You require:
A carbide hob for improved tool performance and longevity; TiAlN coating for dry cutting; AA-grade accuracy for precise tolerances; helical hob geometry that matches the gear helix; your 6-axis CNC hobbing centre’s compatibility
Last Checklist: Things to Consider Before Purchasing a Gear Hob Cutter
1. Which module/DP, pressure angle, and gear type are you cutting?
2. What kind of material is used to make the gear blank?
3. What degree of precision is necessary?
4. Will you make your cuts wet or dry?
5. Which machine are you going to use?
6. Which is more essential, surface finish or tool life?
7. Is standard or custom tool geometry required?
8. Who will provide coatings and regrinds for you?
You can find the right hob by responding to these questions.
Conclusion
Selecting the best gear hob cutter is a strategic investment in quality, performance, and efficiency rather than merely a technical one. Our approach to tool selection must change along with the gear applications.
With the correct hob in your toolbox, you can create gears that satisfy the highest requirements for accuracy and dependability, in addition to extending tool life and reducing cycle times.
